Back-Face Detection We will also be unable to see surfaces with C0. The objects on the back side are not visible.

Back Face Detection Method Geeksforgeeks

Lindeman - WPI Dept.

Back face detection in computer graphics ppt. D All of these. The back-face detection algorithm is always working well for all polyhedron. Back-Face Detection A fast and simple object-space method for identifying the back faces of a polyhedron is based on the inside-outside tests.

C The back-face detection algorithm always works for a convex polyhedron. Let us consider a triangular surface that whose visibility needs to decided. Download Link Unit 7 Notes.

In this faces or polygons which are generally small compared with the size of the image. It is a step in the graphical pipeline that tests whether the points in the polygon appear in clockwise or counter-clockwise order when projected onto the screen. Location of various polygons has separated a basis of depth.

Back face detection Computer Graphics lec-51 Bhanu Priya. It is used to group of pixels cover by same visible face. This method will remove 50 of polygons from the scene if the parallel projection is used.

Classification back-face detection depth-buffer scan-line depth sorting BSP-tree methods area sub-division and octree methods. Therefore a polygon is a back face if. Of Computer Science 21 Back Face Culling cont If we find a back face do not draw Save rendering resources.

Computer Graphics Notes Pdf CG Notes Pdf. There are many face detection algorithms to locate a human face in a scene easier and harder ones. If playback doesnt begin shortly try restarting your device.

That is the polygons of the surface of the object completely enclose the object. Backgroundillumination Diﬀuse Specular Ambient. Computer Graphics Notes Pdf CG Notes Pdf.

UNIT VII. Depth comparison Z-buffer back-face removal. Finding faces in images with controlled background.

You really should read to the end else you will miss the most important developments. Back-Face detection also known as Plane Equation method is an object space method in which objects and parts of objects are compared to find out the visible surfaces. In other words we can say that computer graphics is a rendering tool for the generation and manipulation of.

Here is a list of the most common techniques in face detection. However remember that after application of the viewing transformation we are looking down the negative z-axis. Depth of surface at one point is calculated the depth of points on rest of the surface can often be determined by a simple difference equation.

It involves computations creation and manipulation of data. There must be other forward faces closer to eye F is face of object we want to test if back face P is a point on F Form view vector V as eye P N is normal to face F. Scan line algorithm priority algorithm.

Back-Face Detection A polygon surface is a back face if. Back-Face detection also known as Plane Equation method is an object space method in which objects and parts of objects are compared to find out the visible surfaces. In computer graphics back-face culling determines whether a polygon of a graphical object is visible.

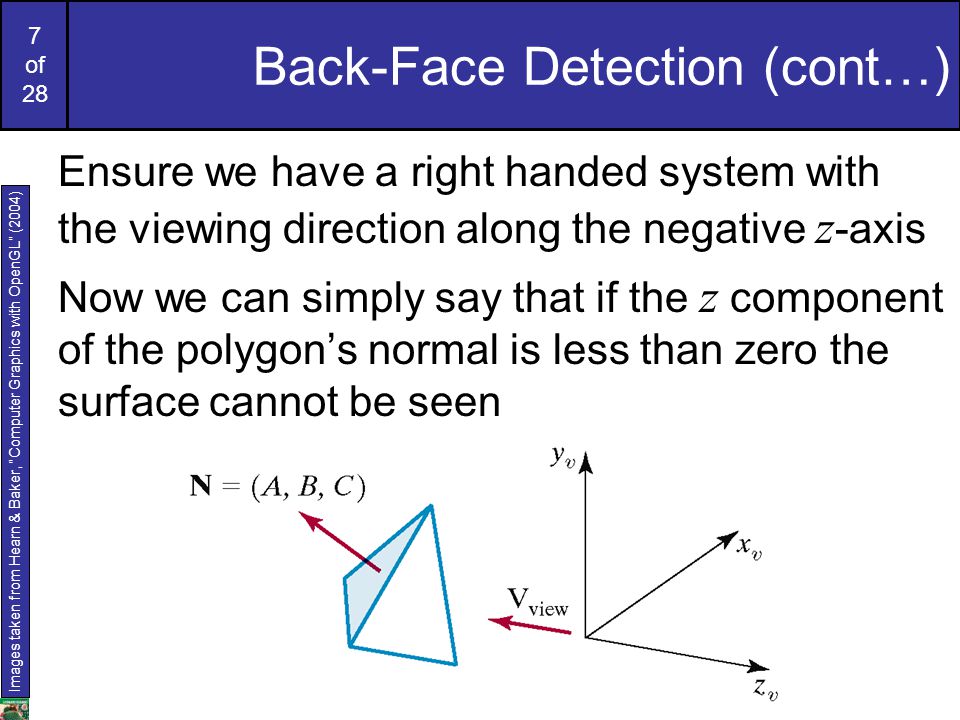

Back-face culling an object space algorithm works on solid objects which you are looking at from the outside. Back Face Culling n If we find backface do not draw save rendering resources n There must be other forward faces closer to eye n F is face of object we want to test if backface n P is a point on F n Form view vector V as eye P n N is normal to face F N V N Backface test. B The back-face detection algorithm always works for a concave polyhedron.

Visible surface detection methods. Back Face Removal Algorithm. F is backface if NV 0 why.

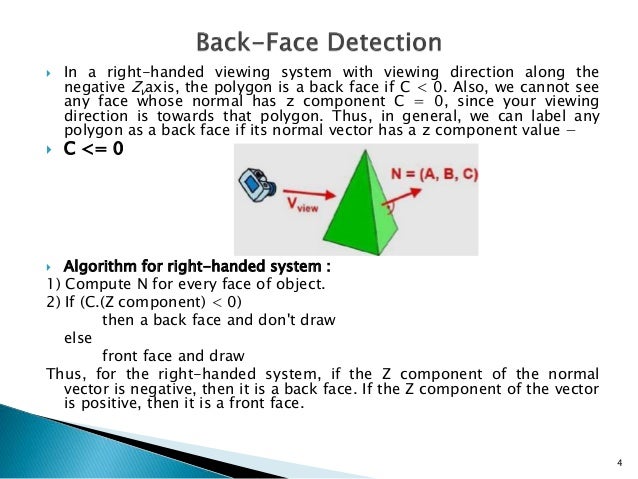

Let us consider a triangular surface that whose visibility needs to decided. 0view NV 0ifor 0100 C N 8. A point x y z is inside a polygon surface with plane parameters A B C and D if When an inside point is along the line of sight to the surface the polygon must be a back face we are inside that face and cannot see the front of it from our viewing position.

The types of hidden surface removal algorithm are. When we project 3-D objects on a 2-D screen we need to detect the faces that are hidden on 2D. If the perspective projection is used then more than 50 of.

It is used to plot only surfaces which will face the camera. Computer Graphics 6 Computer graphics is an art of drawing pictures on computer screens with the help of programming. Every planar polygon has a surface normal that is.

The idea is to check if the triangle will be facing away from the viewer or not.
